Vacuum Suction Micro Screw Locking Module

Name: Vacuum Suction Micro Screw Locking Module
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
Price: 6000 USD
Availability: InStock

Einzelheiten zum Produkt

Zahlungs- und Versandbedingungen

Min Bestellmenge: 1

Preis: 6000

Erhalten Sie besten Preis

Einzelheiten zum Produkt

Beschreibung des Produkts

Bewertungen & Rezensionen

Einzelheiten zum Produkt

Hervorheben:
                                                                                                                                                                                                                                                                                                                                    vacuum suction screw locking module, automatic screw locking machine, micro screw locking module


Gewicht:	30 kg	Maschinentyp:	Automatisch
Touch-Screen:	7 Zoll LCD-Anzeige	Sperrenmoment:	0,8-2,0 Nm
Verriegelungsgeschwindigkeit:	30-60 Schrauben pro Minute	Vorschubgeschwindigkeit:	1-2 Sekunden pro Schraube
Schraubverriegelungsgeschwindigkeit:	00,8-1,2 Sekunden pro Schraube	Typ der Schraubzufuhr:	Vibrationsförderer
Genauigkeit:	±0,1 mm	Schraubengrößenbereich:	M1.0 bis M6.0
Schraubendrehergröße:	M1.0-M5.0	Schraubengrößenbereich:	M1.0 bis M6.0

Gewicht:	30 kg
Maschinentyp:	Automatisch
Touch-Screen:	7 Zoll LCD-Anzeige
Sperrenmoment:	0,8-2,0 Nm
Verriegelungsgeschwindigkeit:	30-60 Schrauben pro Minute
Vorschubgeschwindigkeit:	1-2 Sekunden pro Schraube
Schraubverriegelungsgeschwindigkeit:	00,8-1,2 Sekunden pro Schraube
Typ der Schraubzufuhr:	Vibrationsförderer
Genauigkeit:	±0,1 mm
Schraubengrößenbereich:	M1.0 bis M6.0
Schraubendrehergröße:	M1.0-M5.0
Schraubengrößenbereich:	M1.0 bis M6.0

Beschreibung des Produkts

Vacuum Suction Micro Screw Locking Module

Professional automated screw tightening, locking, and fastening solution for manufacturing applications.

Product Specifications

Product Name	Screw Locking Machine
Condition	New
Applicable Industries	Manufacturing Plant, Household Appliances Factory
Voltage	AC 110-220V 50/60HZ
Dimensions	800 * 700 * 850mm (WDH)
Adjustable Torque Range	0.5~20Nm
Weight	85kg
Positioning Accuracy	±0.02mm
Locking Screw Specifications	Screw M0.8 to M5
Work Efficiency	1.2-1.5 seconds per piece
Percent of Pass	≥99.5%

Model Specifications

Model	ZT-LSJ041	ZT-LSJ0441-01T	ZT-LSJ0441-02T	ZT-LSJ4411-BKB	Fixture Customization
Screw Feeding	Pick and Place, Magnetic	As Needed
Working Air Pressure	0.4~0.6MPA
Adjustable Torque Range	0.8-20Nm
Machine Axis Number	3 axis	4 axis	4 axis	4 axis	Max moving speed
X Axis	400mm	400mm	400mm	400mm/2X	600mm/s
Y Axis	300mm	300mm/2Y	300mm/2Y	300mm/2Y	600mm/s
Z Axis	100mm	100mm	100mm	100mm	400mm/s
Weight (Kg)	50Kg	65Kg	65Kg	85Kg	Customized
Size (mm)	600750850	800750850	850750850	1000750850	To order

Product Features

Ultra-High Precision Positioning: Repeat positioning accuracy up to ±0.02mm, ensuring pinpoint accuracy in every fastening operation
Wide Torque Adjustment Range: Stepless torque regulation from 0.5–20Nm, effortlessly adapting to diverse applications from precision electronics to industrial assembly
Rapid Cycle Time: Processing speed of just 1.2–1.5 seconds per piece, dramatically boosting production line throughputExceptional
Quality Assurance: Pass rate ≥99.5%, delivering consistent performance that minimizes rework and scrap costs
Flexible Screw Feeding Options: Multiple feeding configurations available to accommodate various line layouts and process requirements
Intelligent Touch Control: Equipped with a high-performance microcontroller and HD touch panel for intuitive operation and clear parameter visibility
Open Data Interfaces: Standard USB and RS232 communication ports for seamless integration with MES and host computer systems
High Safety Standard Design: Full-machine architecture built to rigorous safety standards, safeguarding both operators and equipment

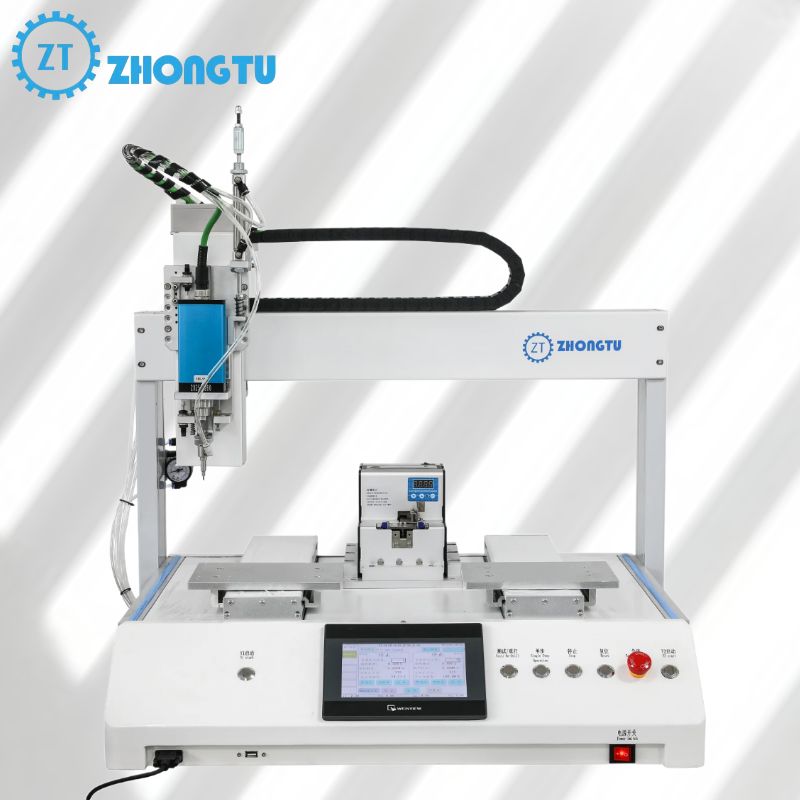

Product Images

Manufacturer Profile

Shenzhen Zhongtu Automation Technology Co., Ltd. is a comprehensive high-tech enterprise deeply rooted in the automation industry, integrating R&D, precision manufacturing, commissioning, and full-lifecycle after-sales service. Driven by cutting-edge design concepts and advanced manufacturing technologies, we are dedicated to delivering end-to-end automation solutions to our clients.

Founded in Shenzhen, China's innovation hub, Zhongtu Automation has grown into a trusted partner for manufacturers seeking intelligent transformation. Our team comprises seasoned engineers and technical specialists with extensive experience in mechanical design, electrical control, software development, and system integration. We maintain a relentless focus on innovation, quality, and customer satisfaction.

Our Mission: To empower manufacturing enterprises with intelligent, efficient, and reliable automation equipment that drives sustainable competitive advantage.

Our Vision: To become a globally recognized leader in automation technology, setting industry benchmarks for precision, efficiency, and service excellence.

Our Advantages

Tooling Fixtures & Hardware Jigs Manufacturing: Custom-designed fixtures and jigs engineered for optimal clamping accuracy and operational durability across various production environments
Precision Machining & Non-Standard Parts Processing: CNC machining, milling, turning, and grinding services for bespoke mechanical components with tight tolerances
Production Line Optimization Solutions: Comprehensive analysis and redesign of existing workflows to eliminate bottlenecks, reduce cycle times, and maximize overall equipment effectiveness (OEE)
Automated Production Line Upgrades: Retrofitting legacy equipment with modern automation technologies to extend asset lifespan and boost productivity
Non-Standard Automation Equipment Design & Manufacturing: Turnkey custom automation systems tailored to specific product requirements, from concept validation to mass production
Automatic Loading & Unloading Manipulator Systems: Robotic handling solutions integrating vision systems, servo drives, and intelligent control for unmanned material flow

Packaging & Shipping

Customer Services

Pre-Sale Services	In-Sale Services	After-Sale Services
Product Introduction Technical Communication Remote Consulting Service	Product Demonstration Detailed Usage Instructions Customer Query Resolution	Video Technical Support 1-Year Full Equipment Warranty 3-Year Warranty on Guide Rail/Motor/Control Parts

Frequently Asked Questions

Who are we?

Based in Guangdong, China since 2015, with 11-50 professionals in our office.

How do we guarantee quality?

Pre-production samples before mass production; final inspection before shipment.

What products do we offer?

Soldering machines, Precision spot welding machines, Glue dispensers, Screw machines.

Why choose us over other suppliers?

Ultra-professional service and expertise to provide high-performance equipment at competitive prices.

What services do we provide?

Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.

What is your warranty policy?

1-Year Warranty for unit machine and 3-year warranty for main board.

Can I purchase samples?

Yes! Welcome to place sample orders to test our superior quality and service.

Are you a trading company or manufacturer?

We are professional automation machine manufacturers since 2015.
